Description
Features :
– 4 years battery, 2 years inverter warranty

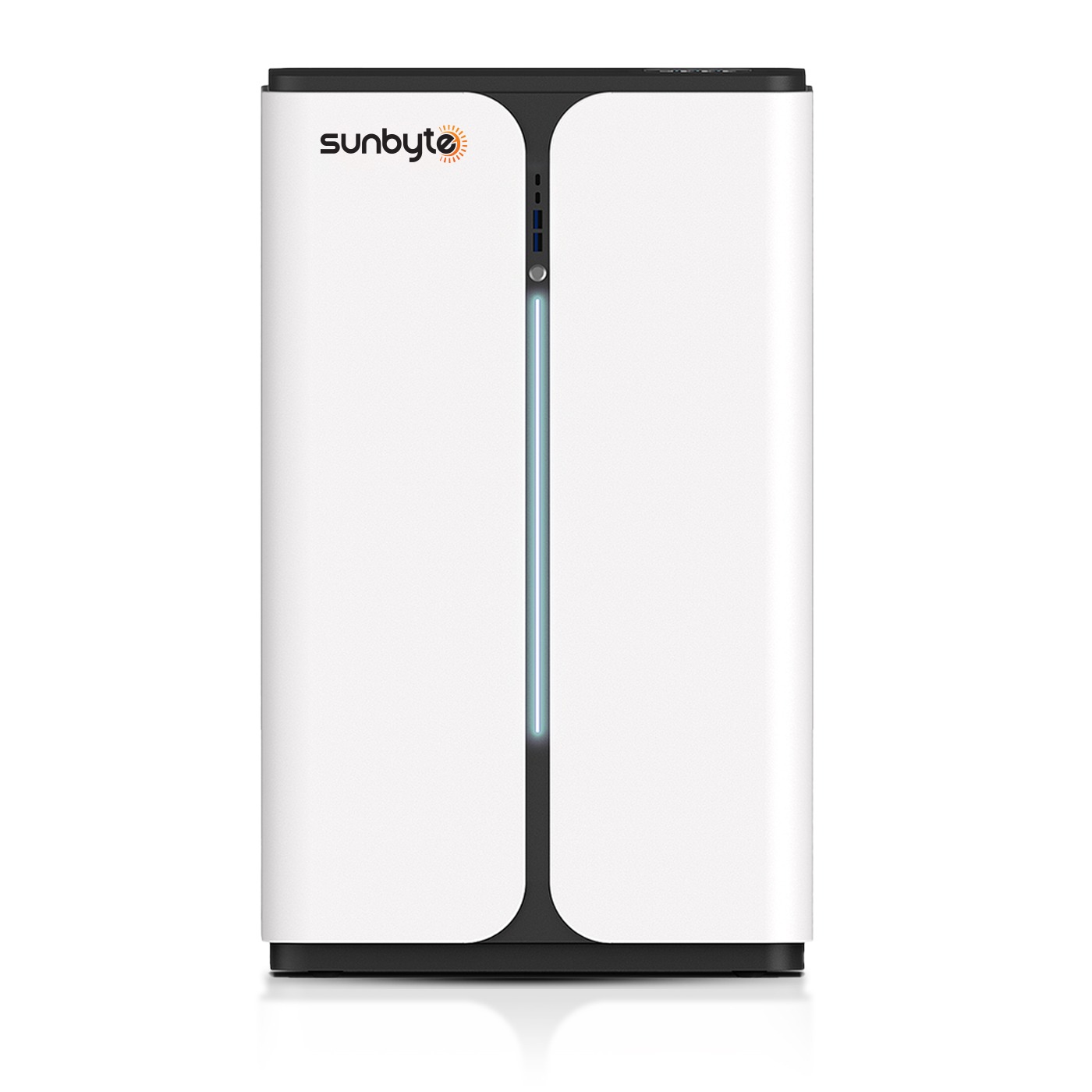

– Portable Power Station, high capacity in compact size
– Pure sine wave AC output with Lithium-ion battery bank
– Power 99% of your home appliances
– Scalable output power from 1K to 3K
– 60A-80A built-in AC and Solar charger
– Super-fast recharge, 0-90% in one hour
– 3AC outlets, 4DC outputs, terminal block for 1K/3K
– Dual inputs, grid and solar
– Built-in battery management system (BMS)
General Specification :
| Specification |
Attributes |
| Inverter/Charger | |
| Inverter Type | 3KVA/24V |
| Rated Output Power | 2.4KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage | 230Vac 50Hz |
| Low DC Warning Voltage | 23.8Vdc |
| Low DC Cut-off Voltage | 23.4Vdc |
| Low DC Warning Return Voltage | 24 Vdc |
| Charging Current (Utility + Solar) | 80A Max |
| Bulk Charging Voltage | 28.8Vdc |
| Float Charging Voltage | 28Vdc |
| AC Input | |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 170Vac ±7 (UPS), 90Vac ±7 (Appliances) |
| Low Loss Return Voltage | 180Vac ±7 (UPS), 100Vac ±7 (Appliances) |
| High Loss Voltage | 280Vac ±7 |
| High Loss Return Voltage | 270Vac ±7 |
| Max. AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50HZ/60HZ (Auto detection) |
| AC Charging Current | 60A Max |
| Solar Input | |
| Nominal PV Voltage | 240Vdc |
| PV Array MPPT Voltage Range | 30Vdc-350Vdc |
| Max. PV Array Open Circuit Voltage | 400Vdc |
| Solar Charging Current | 60A Max |
| Lithium-Ion Battery | |
| Capacity | 2560Wh |
| Nominal Battery Voltage | 25.6Vdc |
| Typical Capacity | 100Ah |
| Max. Charge Current | 50A |
| Max. Discharge Current | 100A |
| Operation Voltage Range | 22.4Vdc-29.2Vdc |
| Operation Temperature | -10°C~+50°C |
| Protection | |
| Protection Features | Overcharge, Over discharge, Overcurrent, Short circuit, Overtemperature protection |
| Ambient | |
| Noise (dB) | <40dB (1 meter) |
| Working Temperature | -10°C~+50°C |
| Humidity | 0-95% (no condensation) |
| Sea Level (m) | 1500 |
| Dimensions & Weight | |
| Product Size (LxWxH) | 450*279*731mm |
| Package Size (LxWxH) | 535*364*816mm |
| Net Weight (NW Kg) | 42.0 Kg |
| Gross Weight (GW Kg) | 47.0 Kg |
